Airbus-AS350B3e

Is the high-performance version of the single engine Ecureuil family.
It demonstrated its tremendous capabilities while breaking the World record for the highest altitude landing and takeoff.
It excels in hot & high and extreme environmments.
The cockpit is fitted with a new dual-channel Full Authority Digital Engine control (FADEC) that increase  safety and affidability.

CAPACITY: 1 Pilot / 5 Passenger
WEIGHT:
Maximum takeoff weight: 2,370 Kg / 5,225 lb
Maximum takeoff Weight with external load: 2,800 Kg / 6,172 lb
Maximum cargo-swing load: 1,400 Kg / 3,086 lb

ENGINE:
1 TURBOMECA ARRIEL 2D turboshaft
Takeoff power (at SL-ISA): 632kW / 847 shp

PERFORMANCE:
Maximum speed (VNE): 287 Kmh / 155 kts
Fast cruise speed 258 Kmh / 140 kts
Range with standard tank: 651 Km   / 351 NM
Max endurance ( 54 kts) 4 h 28 min.
Maximum Altitude (PA) 7,100 m / 23,000 ft

Learn More

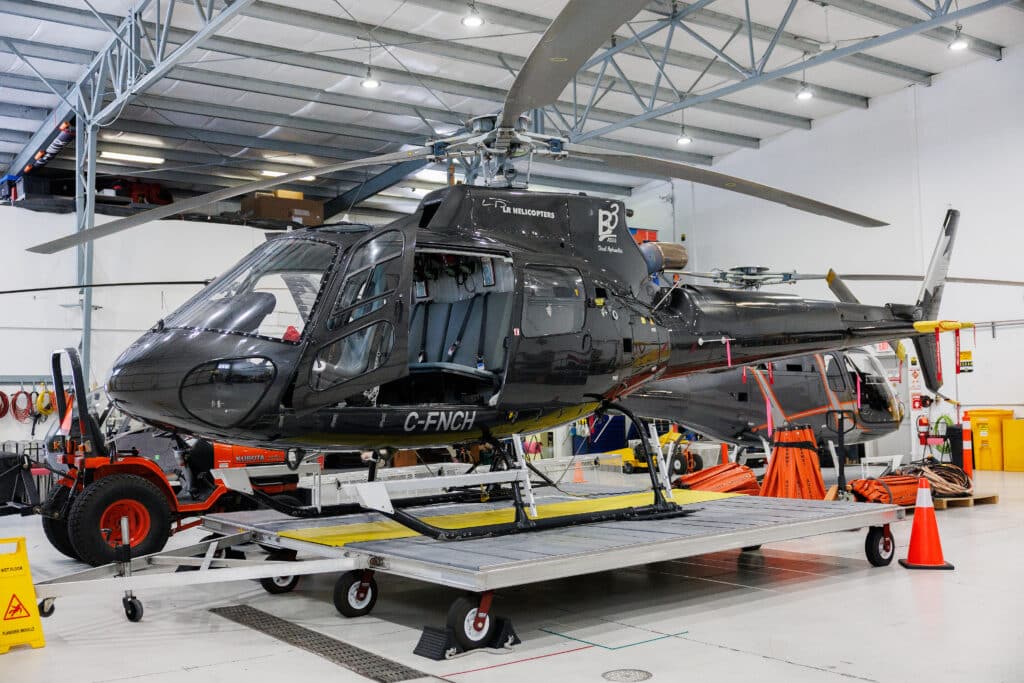

Airbus-AS350B3+DH

The single engine AS 350B3+ is the powerful AS350,  reliable, comfortable, safe and cost-effective.
With its lifting power capacity, endurance and manoeuvrability, the AS350 is always up for the most rigorous high and hot missions and sling work .

CAPACITY:
WEIGHT: 1 Pilot / 5 Passenger
Maximum takeoff weight: 2,250 Kg / 4,960 lb
Maximum takeoff Weight with external load: 2,800 Kg / 6,172 lb
Maximum cargo-swing load:1,400 Kg / 3,086 lb

ENGINE:
1 TURBOMECA ARRIEL 2D turboshaft
Takeoff power (at SL-ISA) 632kW / 847 shp

PERFORMANCE:
Maximum speed (VNE): 287 Kmh / 155 kts
Fast cruise speed 258 Kmh / 140 kts
Range with standard tank: 651 Km   / 351 NM
Max endurance ( 54 kts) 4 h 28 min.
Maximum Altitude (PA) 7,100 m / 23,000 ft

Learn More

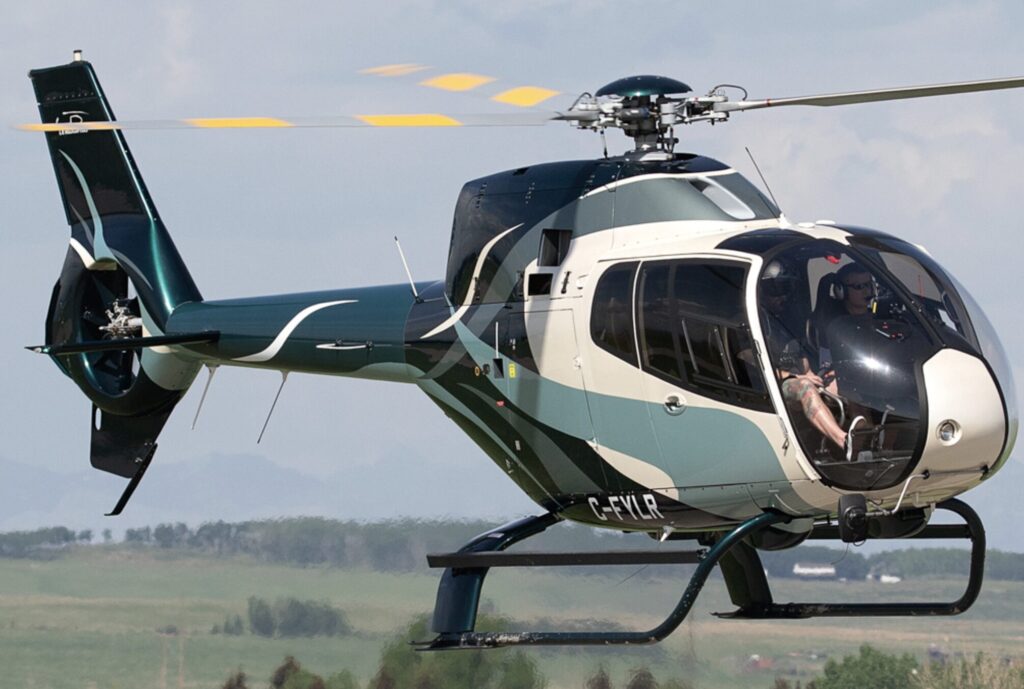

Airbus-EC120

Designed to provide mission flexibility the EC120 offers low fuel consumption and operating costs.
The EC120 comfortably seats one pilot and four passengers inside a wide, unobstructed cabin with ample leg room and air conditioning.

Main missions:
– Private & Business Aviation
– PBA – Law enforcement
– Training

CAPACITY: 1 Pilot / 4 Passengers
WEIGHT: Maximum Takeoff weight: 1,715 Kg / 3,781 lb
Maximum Takeoff wheith external load: 1,800 Kg / 3,968 lb
Maximum Cargo sling load: 700 Kg / 1,543 lb
Useful load: 714 Kg / 1,574 lb

ENGINE:
1 TURBOMECA Arrius  2F, Turboshaft
Maximum Takeoff power: 376Kw / 504 shp

PERFORMANCE:
Fast cruise speed: 223 Kmh / 120 kt
Range: 710 Km / 383 NM
Endurance: 4 h 19 min.

Learn More


Airbus-AS355N

The AS355 NP is the twin-engine version of Airbus Helicopters, Inc.’s popular Astars family.

Retaining the same excellent handling, sturdiness and ease of maintenance, the AS355 NP incorporates twin-engine added reliability and performance – which makes it ideal for police and parapublic missions, as well as operations over water, rugged terrain and urban areas.

Max weight: 5,732 lbs.
Capacity: 1 pilot + 5/6 passengers
Powerplant: 2 Turbomeca Arrius 1A1
Fast cruise speed: 120 kts.

Learn More


Bell-BH212-with-BLR-FastFin

The Bell 212 is a reliable multi engine medium lift helicopter, offering maximum safety in a variety of operations. It offers excellent performance in hot and high situations.

CAPACITY: 1 Pilot / 13/14 Passenger
WEIGHT:
Maximum takeoff weight: 5,080 Kg / 11,200 lb
Empty operating weight 2,720 Kg / 5,997 lb
Maximum cargo-swing load: 1,400 Kg / 3,450 lb

ENGINE:
2 Pratt & Whitney Canada PT6T-3B
Takeoff power (at SL-ISA) 632kW / 847 shp

PERFORMANCE:
Maximum speed (VNE) 223 Kmh / 130 kts
Normal speed 185 Kmh / 100 kts
Range with standard tank: 650 Km   / 237 NM

Learn More


Bell-BH06-L3

The Long Ranger combines the proven reliability of the Bell 206 Jetranger with the cabin size and useful load of an intermediate helicopter.
Can accommodate two stretchers and two medical attendants in aerial ambulance configuration.
The LongRanger has found favour not only as a corporate transport, but with utility, police and medical services worldwide.

CAPACITY: 1 pilot / 6 passengers
WEIGHT:
Maximum weight: 1883 Kg / 4,150 lb
Empty Weight: 998 Kg / 2,200 lb
Maximum Cargo: 885 Kg / 1,950 lb
Sling load Capability: 907 Kg / 2,000 lb

ENGINE:
1 Rolls Royce 250-C30-P
Takeoff power: 485Kw / 650 shp

PERFORMANCE:
Maximum Speed (VNE): 240 Km h / 130 kts
Cruise Speed: 203 Km h / 110 kts
Maximum Endurance (5000ft): 666 km / 260 NM
Maximum altitude: 6000mt / 20,000 ft

Learn More


Bell-BH06-JR

Bell Helicopters 206Jet Ranger
The Bell 206 JetRanger is a single-engine five-seat light utility helicopter one of the most popular in North America.

CAPACITY:1 Pilot / 4 Passenger
WEIGHT:
Maximum takeoff weight: 1,451 Kg / 3,200 lb
Empty weight: 730 Kg / 1,609 lb

ENGINE:
1 ALLISON 250-C20B turboshaft
Takeoff power 314kW / 421 shp

PERFORMANCE:
Maximum speed (VNE): 241 Kmh / 130 kts
Range: 693 Km   / 374 NM
Maximum Altitude (PA) 6,096 m / 20,000 ft

Learn More

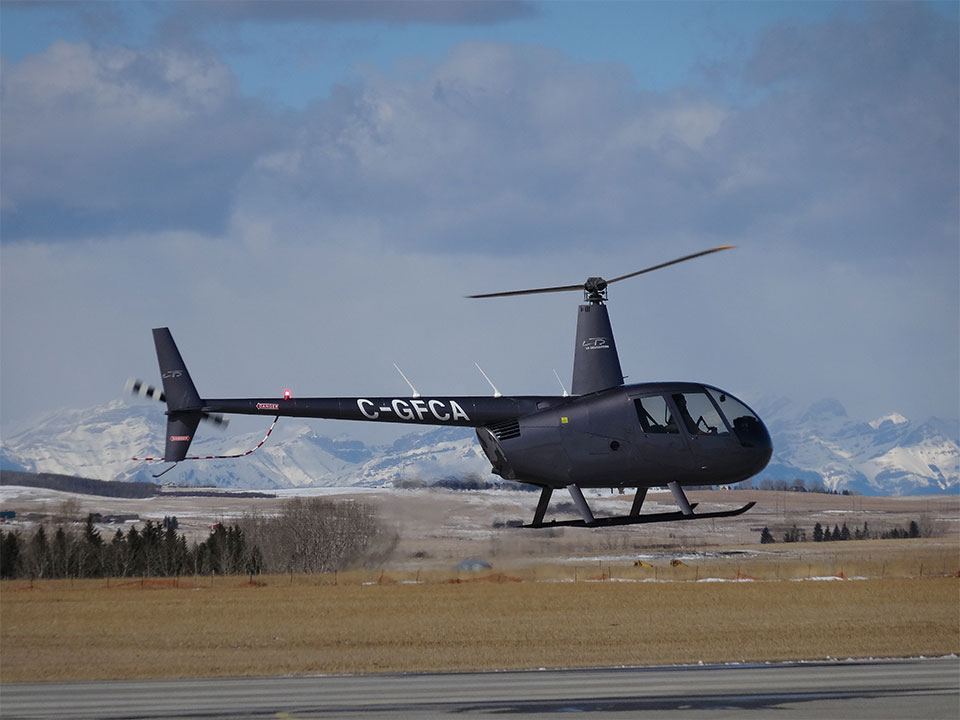

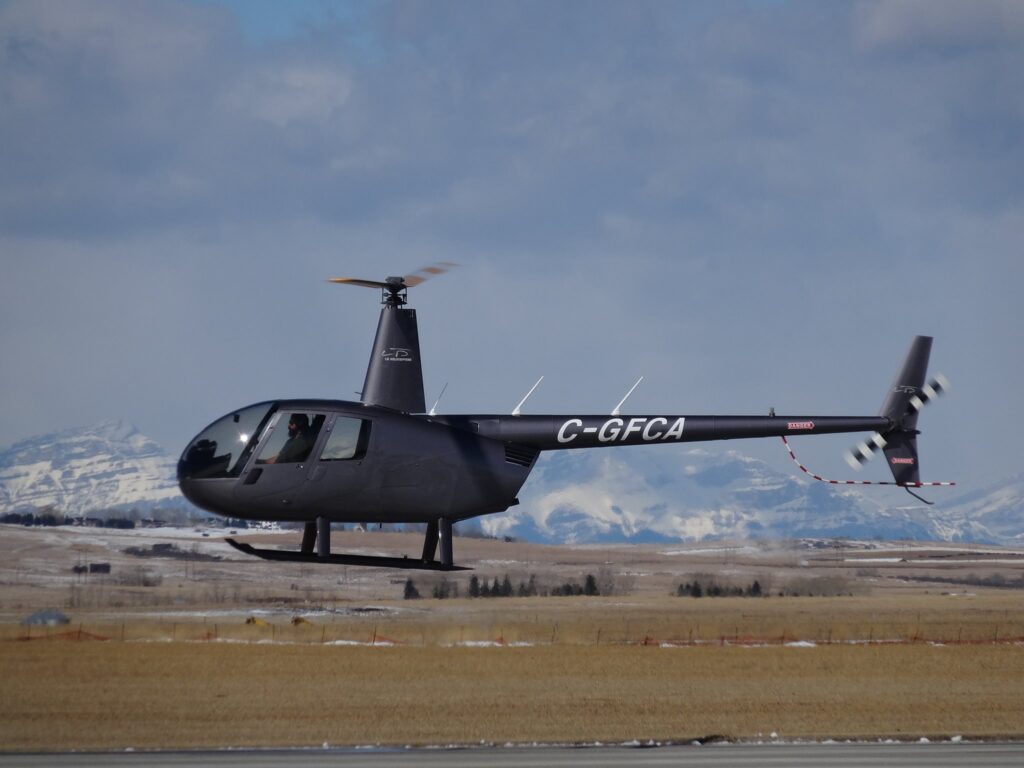

Robinson-RH44II

R44 Raven II is  high performing helicopter, reliable, and easy to maintain.
R44s have a two-bladed rotor system, a T-bar cyclic, and a 1+3 cabin configuration with unobstructed views from every seat.
A lightweight airframe and aerodynamic fuselage optimize airspeed and fuel economy.

CAPACITY: 1 Pilot / 3 passenger
WEIGHT:
Maximum gross weight: 1,134 Kg / 2,500 lb
Empty weight: 680 Kg / 1500 lb

ENGINE:
Lycoming: IO-540, six cylinder,fuel injected
Horsepower: Derated to 245 for takeoff and 205 continuous

PERFORMANCE:
Maximum speed (VNE): 240 Kmh / 130 kts
Cruise Speed: 214 Kmh / 116 kts
Maximum Range (no reserve)*: 555 km / 300 NM
Maximum Operating Altitude: 4267 m / 14000 ft

Learn More


Robinson-RH44II-Eng

The Robinson Newscopter is a fully integrated Electronic News Gathering (ENG) helicopter capable of transmitting, receiving, and recording live audio and video in High Definition. Built to meet the demands of the global TV news industry, the Newscopter’s ENG equipment is designed, tested, and FAA-approved to optimize work flow and to provide an airborne, broadcast-quality studio.

ENG CAMERA

The five-axis gyro-stabilized camera system features a full-bandwidth Ikegami 1080p HD Camera matched with a Canon HD Series 22x (44x with extender) zoom lens for crisp images.
Camera and lens are housed in a rugged nose-mounted gimbal that rotates 360 degrees to track subjects and to film from any angle.
The camera is operated through a laptop console located in the ENG workstation compartment.
Along with all of the camera functions, features include a joy stick controller for X, Y, and Z-axis movements, snap-zoom, transmit, intercom, and video switches.

Camera characteristic

Format: 2/3”,1080p, IT, 50 H or 60 Hz
Gain (dB): 0 to +54dB
Effective pixels: 1920 (horizontal) x 1080 (vertical)
Sensitivity: 2000 lux @ f10
Video Output: HD SDI
Zoom Lens: Canon HJ”” x 7.6
Zoom Ratio: 22x (4x with extender)
Filters: 3000K, 5600K, 5600K + 1/32 ND

Learn More


Augusta-109S-Grand

The AgustaWestland AW109 is a lightweight, twin-engine, eight-seat multi-purpose helicopter built by the Anglo-Italian manufacturer AgustaWestland. This helicopter provides executive travel comfort with high speed capability.

CAPACITY: 1/2 Pilots / 7/6 Passengers
WEIGHT: Maximum takeoff weight: 3,173 Kg / 7,000 lb
Empty Operating Weight: 2,049 Kg / 4,518 lb

ENGINE:
2 Pratt & Whitney Canada PW207C
Takeoff power 2 x 548 KW / 2 x 735 shp

PERFORMANCE:
Maximum speed (VNE): 289 Kmh / 156 kts
Hover IGE: 4,750 m  /  15,600 ft
Hover OGE: 3,050 m  /  10,000 ft
Maximum Range: 859 Km   / 464 NM
Maximum Endurance: 4hrs 31 min
Serving Ceiling 4,880 m / 16,000 ft

Learn More

L R Helicopter Aircraft Augusta-109S
L R Helicopters AGUSTA 109 Trekker Helicopter

AGUSTA 109 Trekker

The AW109 Trekker is the newest light twin-engine helicopter in the 3-tonne class; ideally suited to SAR, utility and aerial work operations which require best-in-class lifting capability, alongside superior range and performance.

The aircraft features a large, rapidly reconfigurable modular interior multi-role versatility, rugged, skid landing gear and cocoon-type high strength airframe and crash resistance systems for optimized safety. The AW109 Trekker features Category A Class 1 performance.

CAPACITY:
1/2 Pilots / 6/7 Passengers
1/2 Pilots / 1 Stretcher and 3/4 medical attendants
1/2 Pilots / 2 Stretcher and 2 medical attendants

WEIGHT:
Maximum takeoff weight Internal: 3,175 Kg / 7,000 lb
Maximun takeoff weight External: 3,402 Kg / 7,500 lb
Empty Operating Weight : 2,049 Kg / 4,518 lb

ENGINE:
2 Pratt & Whitney Canada PW207C
Takeoff power 2 x 548 KW / 2 x 735 shp

PERFORMANCE:
Maximum speed (VNE): 311 Kmh / 168 kts
Hover IGE: 4,750 m / 15,600 ft
Hover OGE: 3,050 m / 10,000 ft
Rate of Climb 8.5 m/s – 1,680 ft/min
Maximum Range: 824 Km / 445 NM
Maximum Endurance: 4hrs 20 min
Serving Ceiling 4,938 m / 16,200 ft
